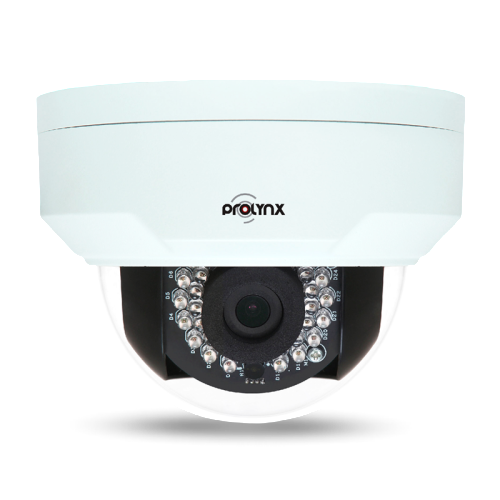

The PL-4NDC27 provides a total peace of mind when it comes to security. This CCTV camera is capable of capturing distant images with vivid clarity. This IP camera has a built-in micro SD slot to increase its storage capacity to 128 GB. It is low on power consumption and saves on electricity cost.
(5 / 5)
| Camera | : |
|---|---|
| Sensor | 1/3", 4 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000s |
| Lens | 2.8 mm |
| Iris | F2.0 |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR |
| S/N | >55 dB |
| WDR | 120 dB |
| VIDEO | : |
| Max. Resolution | 2592 × 1520 |
| Video Compression | H.265/H.264, MJPEG |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Supported |
| AUDIO | : |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| STORAGE | : |
| Edge Storage | Micro SD, up to 128 GB |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Compatible Integration | ONVIF, API |
| INTERFACE | : |
| Audio I/O | Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| GENERAL | : |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption | 3.5W(5.5W with IR on) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F) |
| Humidity | ≤ 90% RH(non-condensing) |
| Ingress Protection | IK10 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
